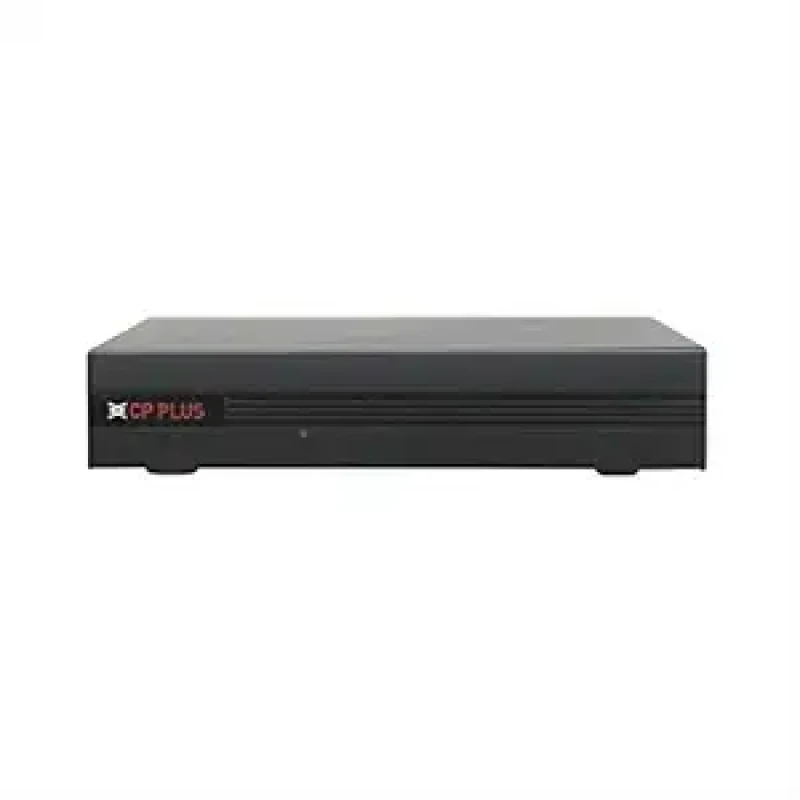

The CP PLUS 1080 4 Channel HD DVR (Model: CP-UVR-0401E1-CS) is a compact and cost-effective surveillance solution designed for small to medium-sized CCTV installations. Here's a detailed overview of its features and specifications:

📌 Key Features:

Video Input Compatibility: Supports multiple video formats including HDCVI, AHD, TVI, and CVBS, accommodating a wide range of analog cameras

IP Camera Support: Allows connection of up to 1 IP camera, with each channel supporting resolutions up to 2MP.(CP Plus)

Video Compression: Utilizes H.264 dual-stream compression to efficiently manage bandwidth and storage.(CP Plus)

Recording & Playback: Offers real-time 1080P recording with various playback options such as fast forward, rewind, and digital zoom.

Event Triggering: Supports multiple event triggers including motion detection, video loss, and tampering, with configurable responses like email alerts, snapshots, and buzzer notifications

Mobile & Remote Access: Compatible with mobile applications like iCMOB and gCMOB, and CMS software such as KVMS Pro for remote monitoring.(CP Plus)

User Management: Accommodates up to 128 user accounts, allowing for flexible user access control.

Backup Options: Provides backup via USB devices or network, facilitating easy data retrieval.

🛠️ Technical Specifications:

Processor: Embedded processor

Operating System: Embedded LINUX(CP Plus)

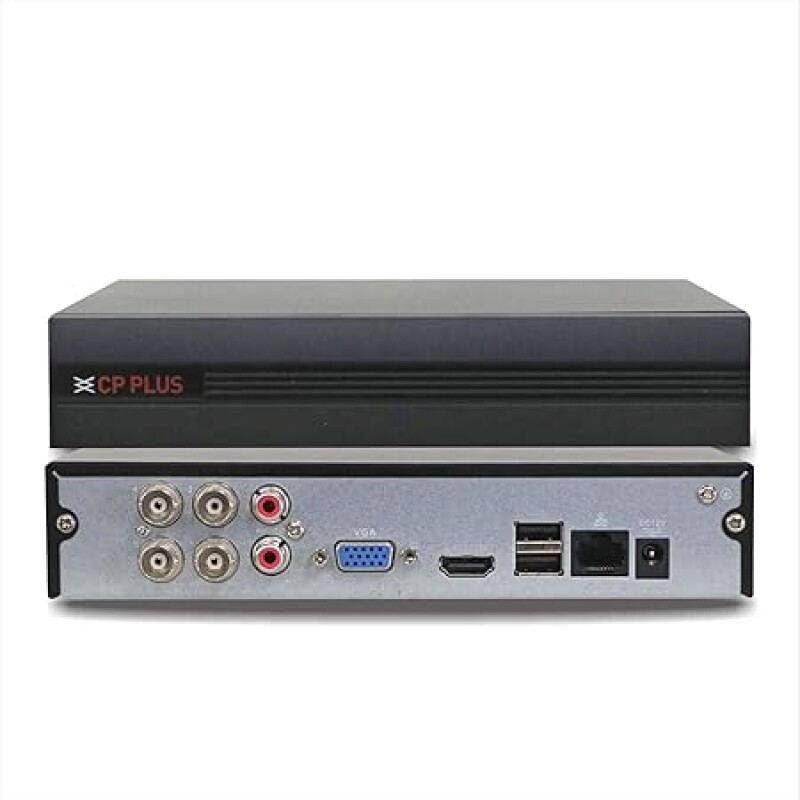

Video Output: 1 HDMI and 1 VGA port supporting resolutions up to 1920×1080

Audio Output: 1 channel, RCA

Ethernet Port: 1 RJ-45 port (100M)

Power Supply: DC12V/1.5A(CP Plus)

Power Consumption: <10W (without HDD)

Operating Temperature: -10°C ~ +45°C

Dimensions: 197mm × 192mm × 38mm(CP Plus)

Weight: 0.55 kg (without HDD)(CP Plus)

✅ Ideal Use Cases:

This DVR is well-suited for:

Home Surveillance: Providing clear video recordings for residential security.

Small Businesses: Offering an affordable solution for monitoring premises

Retail Stores: Ensuring security and loss prevention with reliable video footage.
