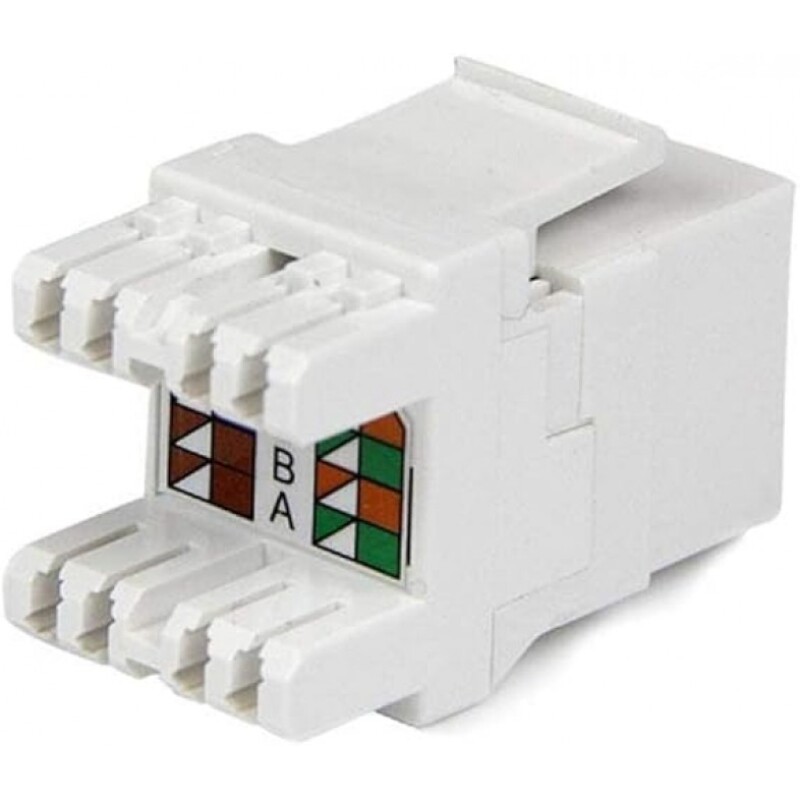

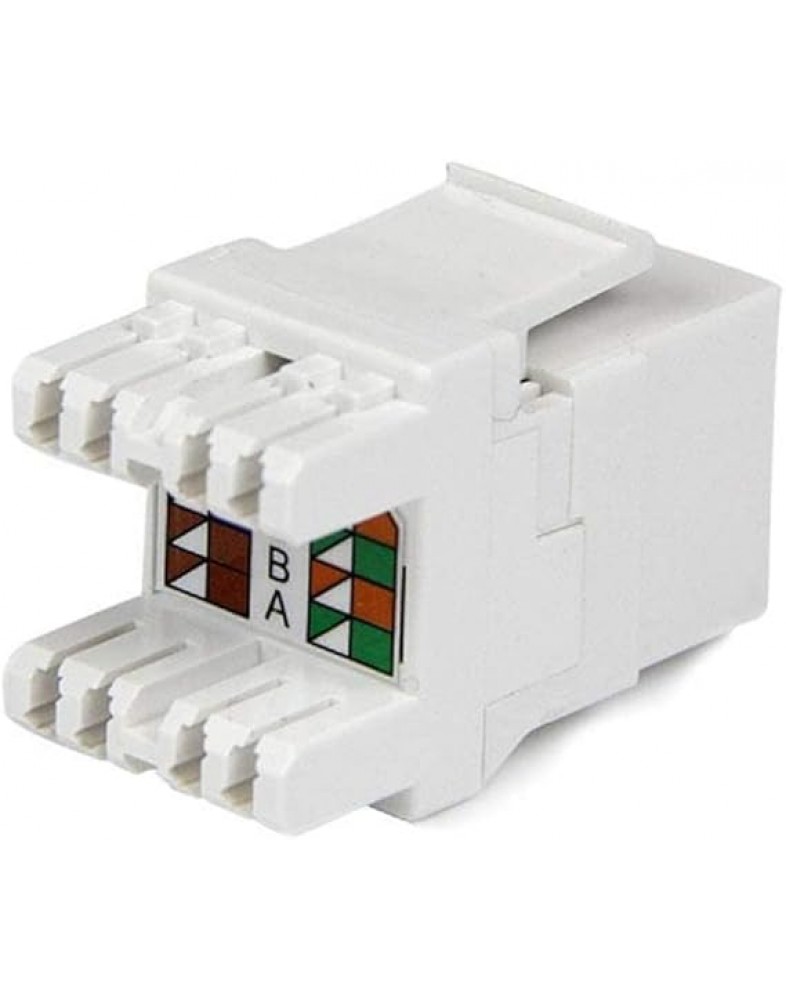

The D-Link Cat6 UTP Keystone Jack is a high-performance networking component designed for structured cabling systems. It facilitates the termination of Cat6 unshielded twisted pair (UTP) cables, ensuring reliable and efficient network connections.(City Com - Inspiring Business Networks, Mtech - Best Electronics in Kenya)

🔧 Key Features

Connector Type: RJ45 8P8C (8 positions, 8 contacts)

Termination Method: 180° IDC (Insulation Displacement Contact) punch-down

Cable Compatibility: Supports 4-pair cables with 22–26 AWG gauge

Color-Coded Labels: Universal labels for T568A and T568B wiring schemes

Mounting Compatibility: Fits standard high-density keystone panels (1U–24 port or 2U–48 port)

Certifications: UL, ETL/Intertek, RoHS compliant

Operating Temperature Range: -10°C to 60°C

Durability: Supports up to 750 mating cycles

Insertion Force: Maximum 20N

Retention Strength: 7.7 kg between jack and plug

🎨 Color Variants

D-Link offers the Cat6 UTP Keystone Jack in five color options:

White: NKJ-C6WHI1B21

Yellow: NKJ-C6YEL1B21

Green: NKJ-C6GRN1B21

Blue: NKJ-C6BLU1B21

Red: NKJ-C6RED1B21(D-Link, D-Link, D-Link)

These color choices aid in network identification and organization. (D-Link)

🛠️ Installation and Performance

Termination Tools: Compatible with both 110 and Krone punch-down tools

Housing Material: UL94V-0 rated ABS+PC plastic for flame resistance

Contact Material: Phosphor bronze with 50µ" gold plating for reliable conductivity

Compliance: Meets ANSI/TIA/EIA-568-C.2 standards for Cat6 performance

Insertion Loss: ≤ 0.1 dB (1–250 MHz)

Crosstalk:

NEXT (Near-End Crosstalk): ≥ 43 dB (1–250 MHz)

PSNEXT (Power Sum NEXT): ≥ 40 dB (1–250 MHz)

Return Loss: ≥ 20 dB (1–250 MHz)

Insulation Resistance: ≥ 500 MΩ at 100 V DC

Contact Resistance: ≤ 20 mΩ(D-Link, Cyber Legend Technologies, Mtech - Best Electronics in Kenya)

✅ Conclusion

The D-Link Cat6 UTP Keystone Jack is an excellent choice for building or expanding structured cabling systems. Its compliance with industry standards, ease of installation, and variety of color options make it suitable for both residential and commercial networking applications.
