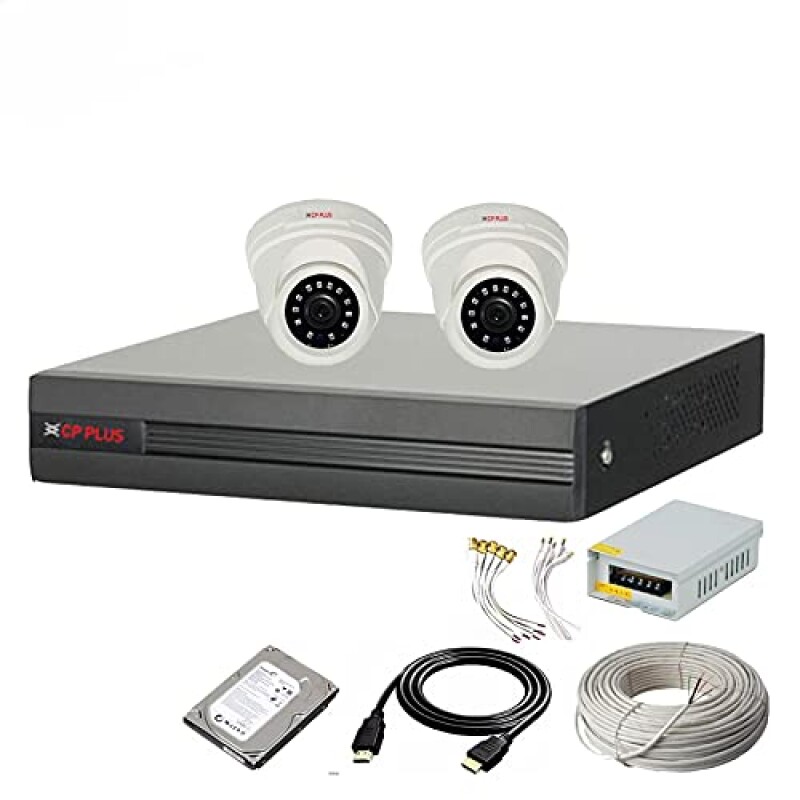

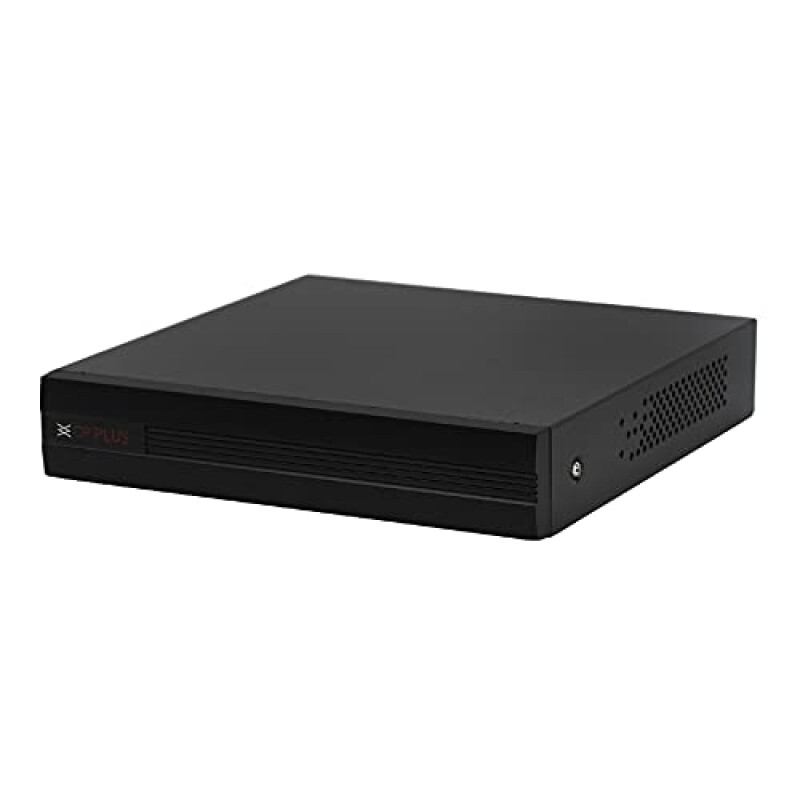

The CP PLUS 4 Channel DVR is a versatile surveillance solution designed to support up to four analog CCTV cameras. Ideal for small to medium-sized installations, it offers a balance between performance and affordability.

🔍 Key Features:

Multi-Format Video Input: Supports HDCVI, AHD, TVI, and CVBS formats, ensuring compatibility with a wide range of analog cameras.(cpplusworld.com)

IP Camera Integration: Allows for the connection of up to 1 IP camera, each supporting resolutions up to 2MP.

High-Definition Recording: Delivers real-time 1080P Lite recording across all channels, capturing clear and detailed footage.

Dual Video Output: Features simultaneous HDMI and VGA outputs for flexible display options.(Amazon India)

Advanced Compression: Utilizes H.264 dual-stream compression to optimize storage and bandwidth usage.

Remote Access: Compatible with mobile applications like iCMOB and gCMOB, and CMS software such as KVMS Pro for remote monitoring.

User Management: Supports up to 128 user accounts, allowing for customizable access control.

Event Triggering: Offers various event triggers including motion detection, video loss, and tampering, with configurable responses like email alerts, snapshots, and buzzer notifications.

Backup Options: Provides backup via USB devices or network, facilitating easy data retrieval.

🛠️ Technical Specifications:

Processor: Embedded processor

Operating System: Embedded LINUX

Video Output: 1 HDMI and 1 VGA port supporting resolutions up to 1920×1080

Audio Output: 1 channel, RCA

Ethernet Port: 1 RJ-45 port (100M)

Power Supply: DC12V/1.5A

Power Consumption: <10W (without HDD)

Operating Temperature: -10°C ~ +45°C

Dimensions: 197mm × 192mm × 38mm

Weight: 0.55 kg (without HDD)

✅ Ideal Use Cases:

This DVR is well-suited for:

Home Surveillance: Providing clear video recordings for residential security.

Small Businesses: Offering an affordable solution for monitoring premises.

Retail Stores: Ensuring security and loss prevention with reliable video footage.
